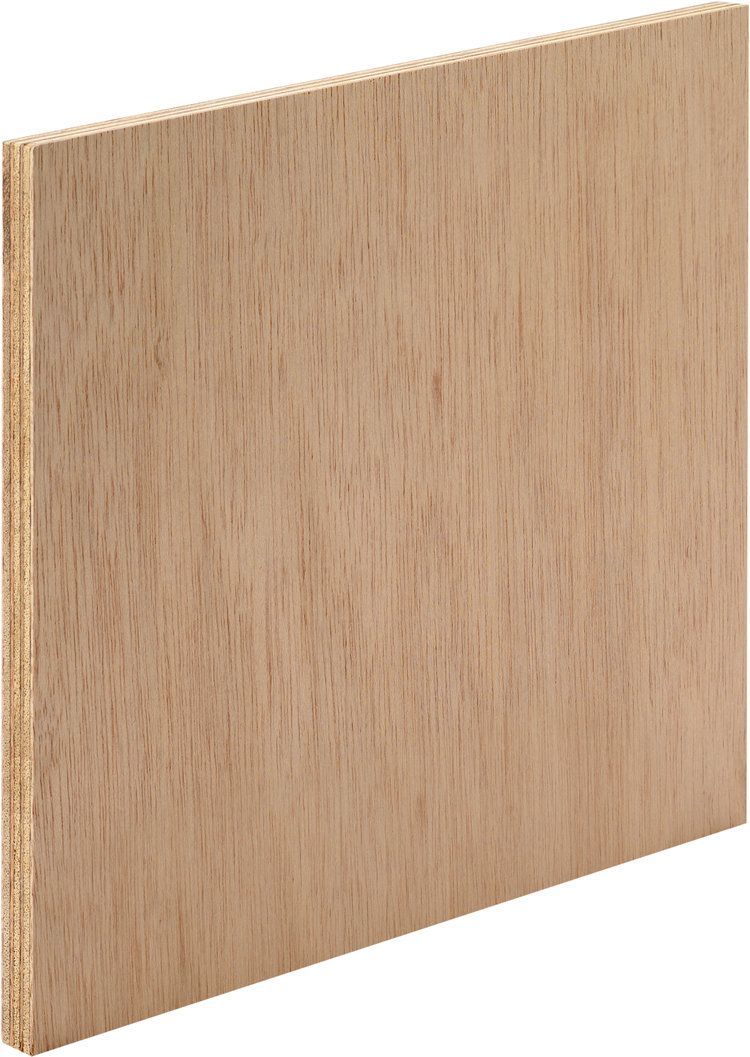

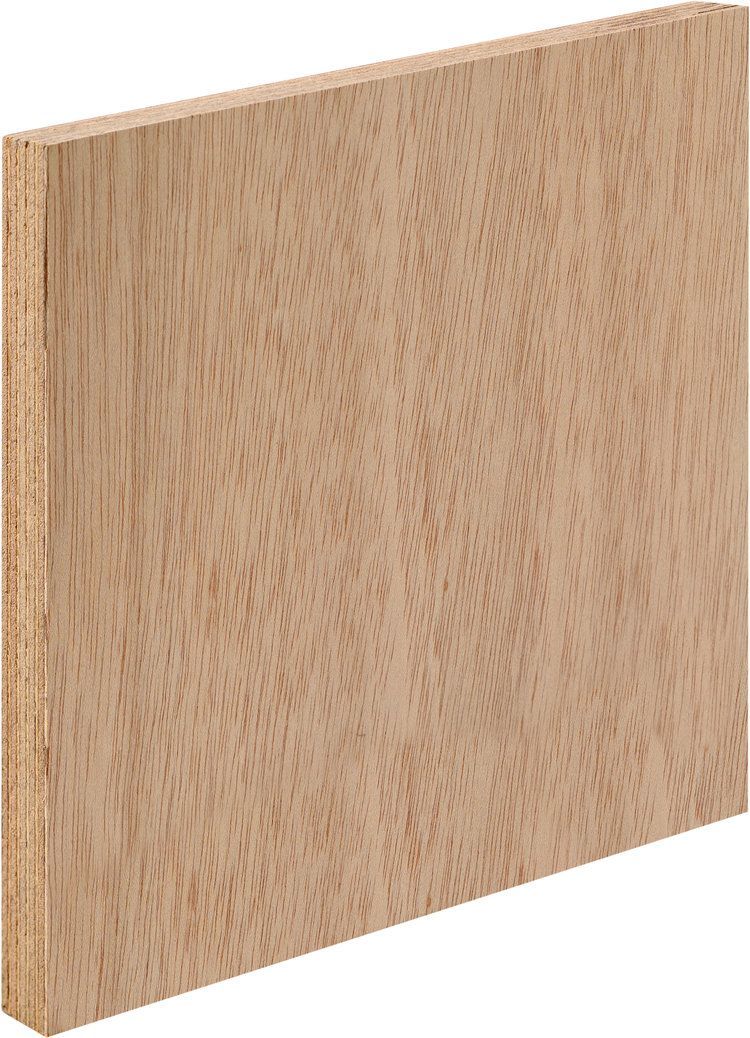

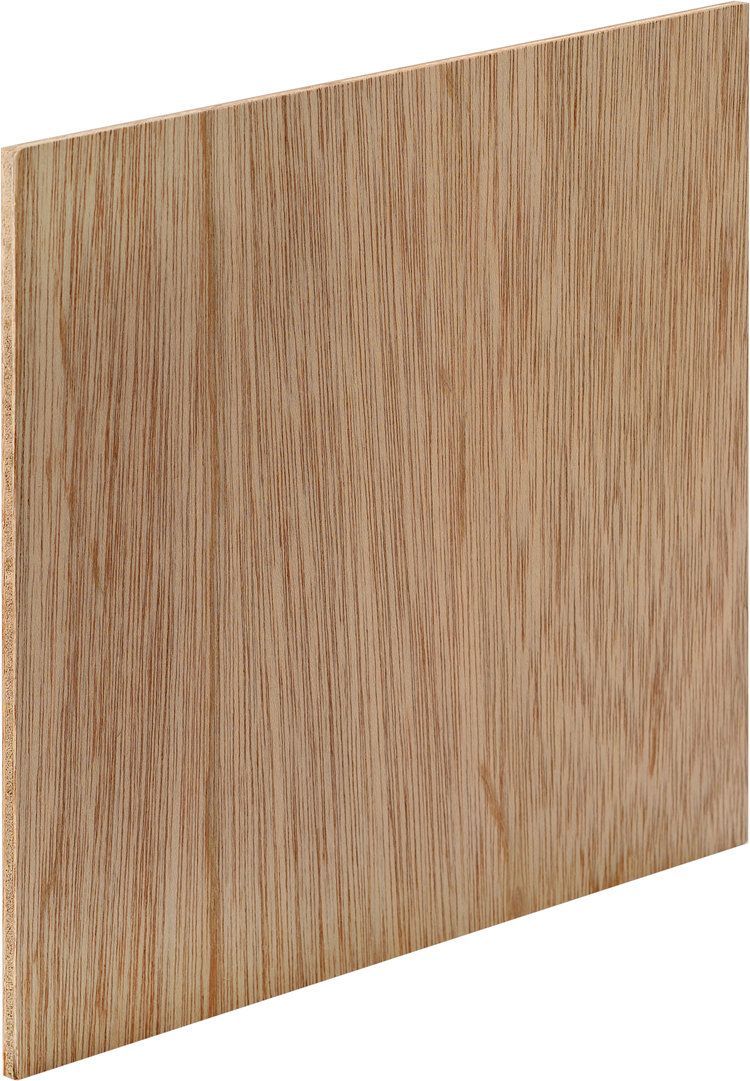

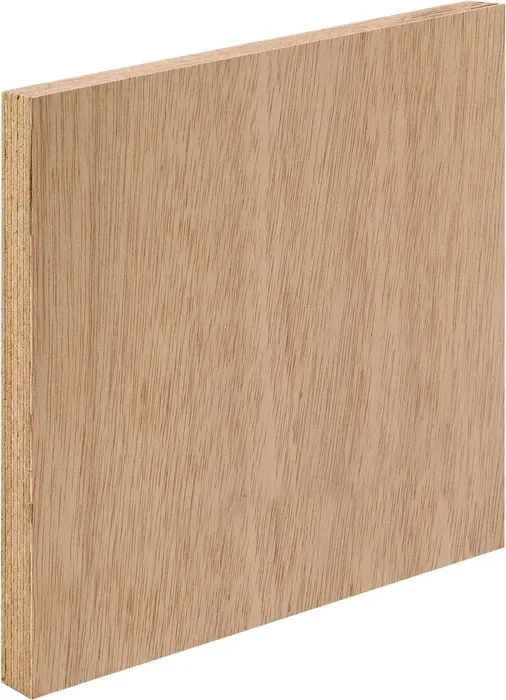

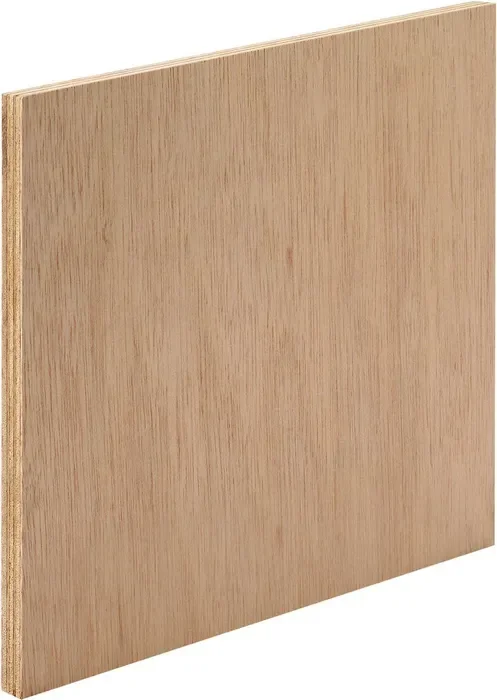

Meranti
Quality Produced, Cost Efficient and Versatile.
Our Meranti is sourced from the highest quality mills in South East Asia. Meranti panels are a cost-efficient option that can be used in a variety of applications including laminating for furniture and wall components, set construction in the film industry and general protection and crating. Canusa Meranti panels are available in full Meranti Core, Falcata Core and Meranti or Falcata Lumber Core.
5.2mm OVL/BTR Meranti
12mm OVL/BTR Meranti
18mm OVL/BTR Meranti
Specifications
FACE AND BACK VENEER
- MERANTI
GRADES
- OVL/BTR
- UTY
- BB/CC
*graded to HPVA standards
DIMENSIONS
*other dimensions available upon request
- 36" x 84"
- 48" x 84"
- 48" x 96"
- 48" x 100"
- 48" x 102"
- 48" x 108"
- 48" x 120"
GLUE TYPE
- TYPE 1 (EXTERIOR) - ULEF
- TYPE 2 (INTERIOR)
THICKNESS / PLY / WEIGHT
*weights are approximate
| 2.7 MM | 3 PLY | 11 LBS / SHEET |
| 3.6 MM | 3 PLY | 14 LBS / SHEET |
| 5.2 MM | 3 or 5 PLY | 21 LBS / SHEET |
| 9 MM | 5 PLY | 40 LBS / SHEET |
| 12 MM | 7 PLY | 53 LBS / SHEET |
| 15 MM | 9 PLY | 67 LBS / SHEET |
| 18 MM | 11 PLY | 80 LBS / SHEET |
| 25 MM | 13 PLY | 112 LBS / SHEET |
COMPLIANT
- CARB2 / TSCA Title VI
- CANFER
Features
Low Cost Production
- Affordable for a wide range of uses
Minimal Core Voids & Overlaps
- Consistent appearance along the edges
Flat and Smooth Surface
- Ideal for laminating
Inspected by Canusa Quality Control Team
- Ensures maximum, consistent quality
